Matplotlib is one of the most popular Python packages used for data visualization. It is a cross-platform library for making 2D plots from data in arrays. It provides an object-oriented API that helps in embedding plots in applications using Python GUI toolkits such as PyQt, WxPythonotTkinter. It can be used in Python and IPython shells, Jupyter notebook and web application servers also.

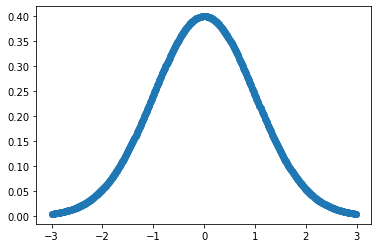

Draw a line graph

%matplotlib inline
from scipy.stats import norm
import matplotlib.pyplot as plt
import numpy as np

x = np.arange(-3, 3, 0.01)

plt.plot(x,norm.pdf(x),"o:")
plt.show()
png

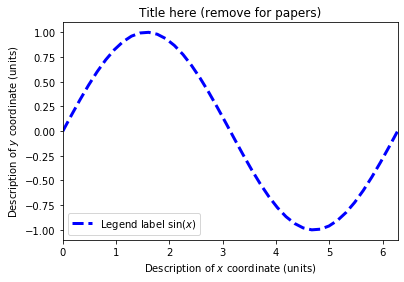

Silly example data

bp_x = np.linspace(0, 2*np.pi, num=40, endpoint=True)
bp_y = np.sin(bp_x)

# Make the plot
plt.plot(bp_x, bp_y, linewidth=3, linestyle="--",
color="blue", label=r"Legend label $\sin(x)$")
plt.xlabel(r"Description of $x$ coordinate (units)")
plt.ylabel(r"Description of $y$ coordinate (units)")
plt.title(r"Title here (remove for papers)")
plt.xlim(0, 2*np.pi)
plt.ylim(-1.1, 1.1)
plt.legend(loc="lower left")
plt.show()# MatPlotLib Basics
png

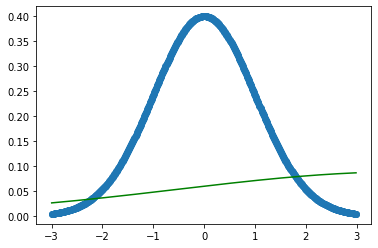

Mutiple Plots on One Graph

plt.plot(x, norm.pdf(x),"o:")
plt.plot(x, norm.pdf(x, 4.0, 4.5),"g-")
plt.show()
png

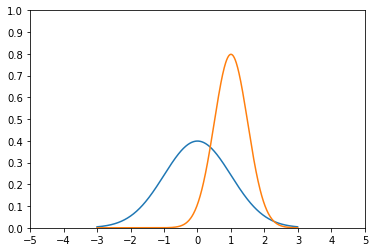

Adjust the Axes

axes = plt.axes()
axes.set_xlim([-5, 5])
axes.set_ylim([0, 1.0])
axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5])
axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0])
plt.plot(x, norm.pdf(x))
plt.plot(x, norm.pdf(x, 1.0, 0.5))
plt.show()
png

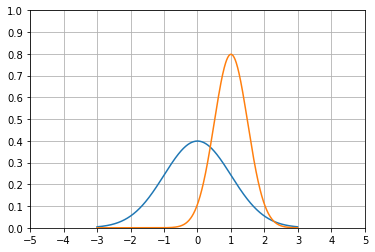

Add a Grid

axes = plt.axes()
axes.set_xlim([-5, 5])
axes.set_ylim([0, 1.0])
axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5])
axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0])
axes.grid()
plt.plot(x, norm.pdf(x))
plt.plot(x, norm.pdf(x, 1.0, 0.5))
plt.show()
png

Change Line Types and Colors

axes = plt.axes()
axes.set_xlim([-5, 5])
axes.set_ylim([0, 1.0])
axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5])
axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0])
axes.grid()
plt.plot(x, norm.pdf(x), 'b-')
plt.plot(x, norm.pdf(x, 1.0, 0.5), 'r:')
plt.show()
png

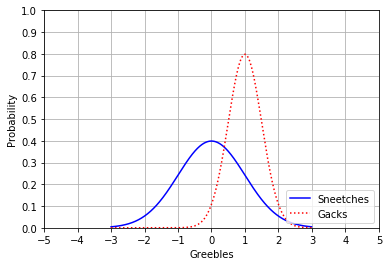

Labeling Axes and Adding a Legend

axes = plt.axes()
axes.set_xlim([-5, 5])
axes.set_ylim([0, 1.0])
axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5])
axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0])
axes.grid()
plt.xlabel('Greebles')
plt.ylabel('Probability')
plt.plot(x, norm.pdf(x), 'b-')
plt.plot(x, norm.pdf(x, 1.0, 0.5), 'r:')
plt.legend(['Sneetches', 'Gacks'], loc=4)
plt.show()
png

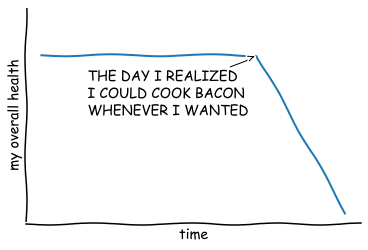

XKCD Style :)

plt.xkcd()

fig = plt.figure()
ax = fig.add_subplot(1, 1, 1)
ax.spines['right'].set_color('none')
ax.spines['top'].set_color('none')
plt.xticks([])
plt.yticks([])
ax.set_ylim([-30, 10])

data = np.ones(100)
data[70:] -= np.arange(30)

plt.annotate(
'THE DAY I REALIZED\nI COULD COOK BACON\nWHENEVER I WANTED',
xy=(70, 1), arrowprops=dict(arrowstyle='->'), xytext=(15, -10))

plt.plot(data)

plt.xlabel('time')
plt.ylabel('my overall health')
Text(0, 0.5, 'my overall health')
png

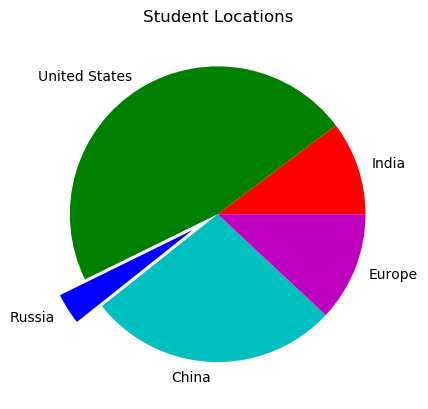

Pie Chart

# Remove XKCD mode:
plt.rcdefaults()

values = [12, 55, 4, 32, 14]
colors = ['r', 'g', 'b', 'c', 'm']
explode = [0, 0, 0.2, 0, 0]
labels = ['India', 'United States', 'Russia', 'China', 'Europe']
plt.pie(values, colors= colors, labels=labels, explode = explode)
plt.title('Student Locations')
plt.show()
png

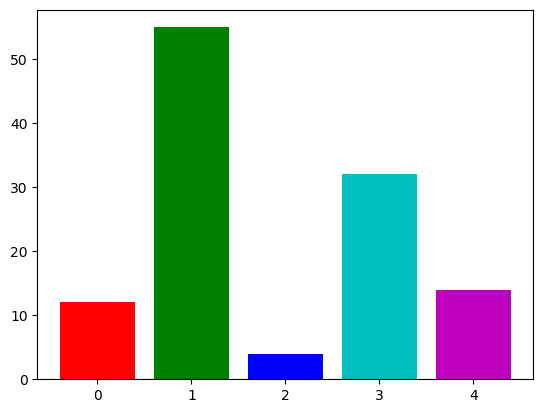

Bar Chart

values = [12, 55, 4, 32, 14]
colors = ['r', 'g', 'b', 'c', 'm']
plt.bar(range(0,5), values, color= colors)
plt.show()
png

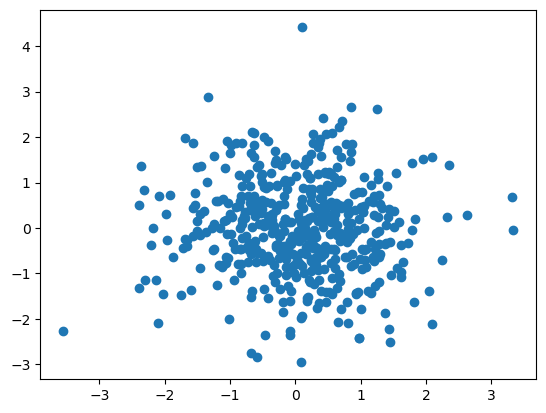

Scatter Plot

from pylab import randn

X = randn(500)
Y = randn(500)
plt.scatter(X,Y)
plt.show()
png

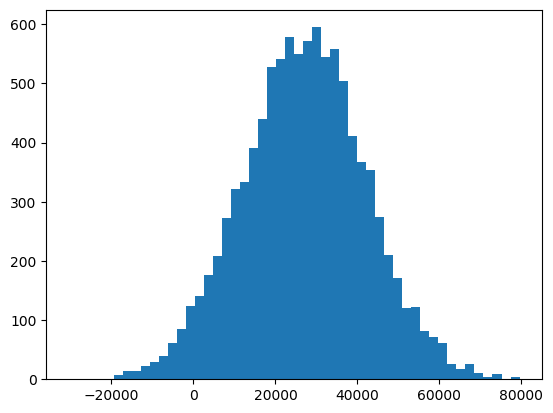

Histogram

incomes = np.random.normal(27000, 15000, 10000)
plt.hist(incomes, 50)
plt.show()
png

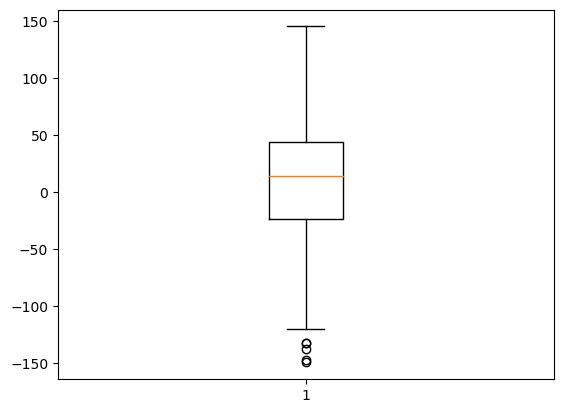

Box & Whisker Plot

The red line represents the median of the data, and the box represents the bounds of the 1st and 3rd quartiles.

So, half of the data exists within the box.

The dotted-line “whiskers” indicate the range of the data — except for outliers, which are plotted outside the whiskers. Outliers are 1.5X or more the interquartile range.

This example below creates uniformly distributed random numbers between -40 and 60, plus a few outliers above 100 and below -100:

uniformSkewed = np.random.rand(100) * 100 - 40
high_outliers = np.random.rand(10) * 50 + 100
low_outliers = np.random.rand(10) * -50 - 100
data = np.concatenate((uniformSkewed, high_outliers, low_outliers))
plt.boxplot(data)
plt.show()
png

Try creating a scatter plot representing random data on age vs. time spent watching TV. Label the axes.
